Conveyor Products Pty Ltd imports an extensive range of TIGER LINE Sheet Rubber which is manufactured and tested to the highest quality standards and suitable for most lining applications.
Most of our range of TIGER Sheet Rubber is supplied with a neoprene-based CN bonding layer. This CN bonding layer requires no buffing and when used in conjunction with any neoprene based adhesive, the highest possible adhesive strengths are achieved.

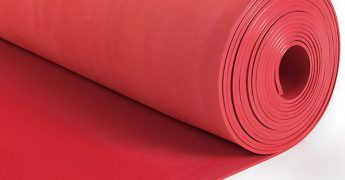

TIGER LINE 38 / CN Pink is a highly elastic grade 38 Shore A natural rubber specifically designed to attain excellent resistance to wet fine and medium size particle abrasion applications.
TIGER LINE 38 / CN Pink is manufactured with a Neoprene CN bonding layer and when used in- conjunction with any type of Neoprene cements, superior adhesion strengths are achieved.
| Colour | Pink with a CN Bonding Layer |
| Specific Gravity | 1.13 g/cm³ |
| Hardness | 38 +/- 5 Shore A |
| Abrasion | 110mm³ |
| Tensile Strength | 20 N/mm³ |
| Elongation at Break | 650% Minimum |
| Available in: | 3mm, 6mm, 10mm, 12mm |

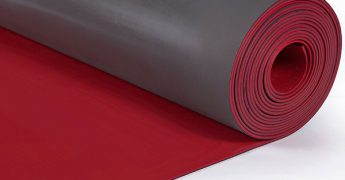

TIGER LINE 38 / BB Pink is a highly elastic premium grade 38 Shore ‘A ’natural rubber specifically designed to attain excellent resistance to wet-coarse fine particle abrasion applications.
TIGER LINE 38 / BB Pink is manufactured and then one side is pre-Roughened in the factory. This roughened surface is ideally suited to assist the applicator in the bonding procedure.
| Colour | Pink with a Roughened Back |
| Specific Gravity | 1.13 g/cm³ |
| Hardness | 38 +/- 5 Shore A |
| Abrasion | 110mm³ |
| Tensile Strength | 20 N/mm³ |
| Elongation at Break | 650% Minimum |
| Available in: | 3mm, 6mm, 10mm, 12mm |

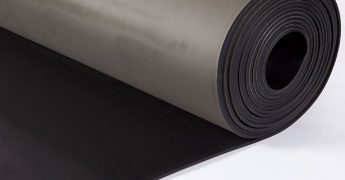

TIGER LINE 60 / CN Black is a premium grade 60 Shore ‘A’ Styrene-Butadiene rubber specifically designed for excellent resistance to impact, tear and dry particle abrasion applications.
TIGER LINE 60 / CN Black is manufactured with a Neoprene CN bonding layer and when used in- conjunction with any type of Neoprene cements, superior adhesion strengths are achieved.
| Colour | Black with a CN Bonding Layer |
| Specific Gravity | 1.14 g/cm³ |
| Hardness | 60 +/- 5 Shore A |
| Abrasion | 140mm³ |
| Tensile Strength | 14 N/33³ |
| Elongation at Break | 520% Minimum |
| Available in: | 6mm, 10mm, 12mm |
