PulleyMan Winch

Conveyor Products Pty Ltd is the exclusive importer of the Korean manufactured PULLEYMAN Winch. This is a fully portable, electric drill operated 300 Kgs single line or 600 Kgs double line lifting winch. It also has a pulling load of 1500 Kgs or  3000 kgs with the double line option.

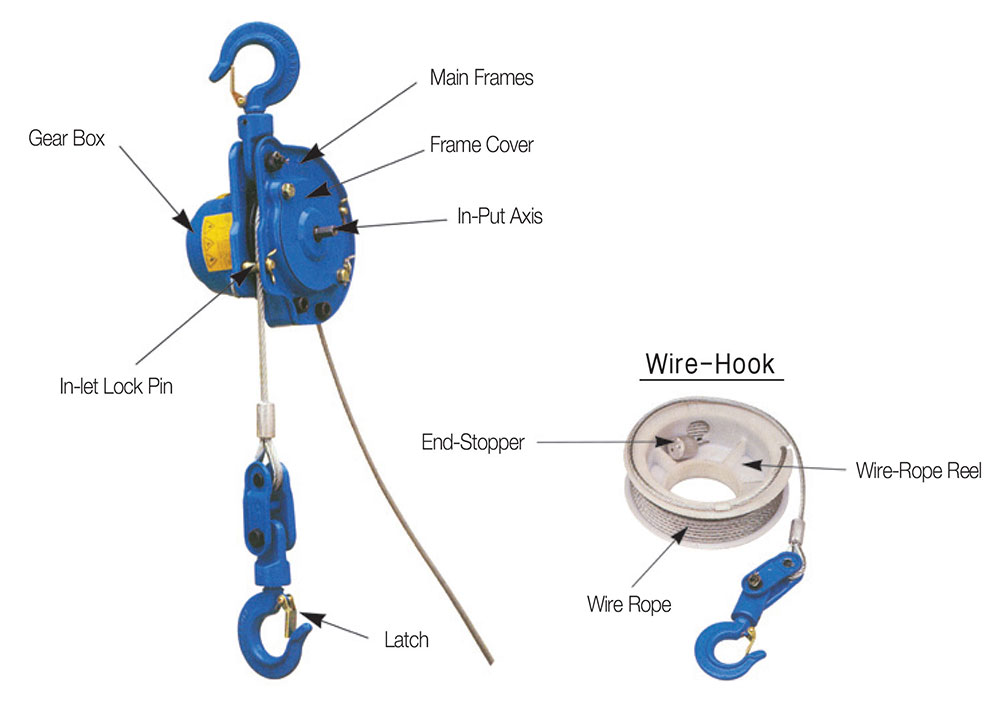

Lifting or hauling winch

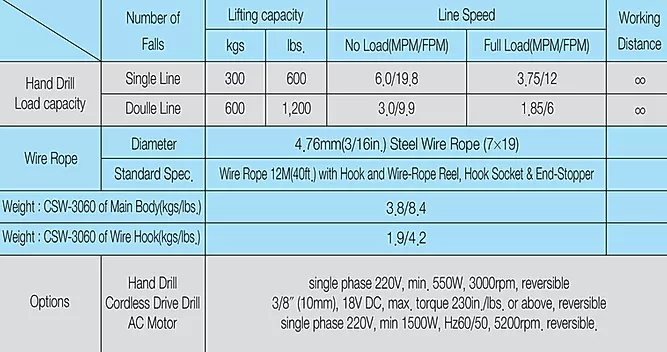

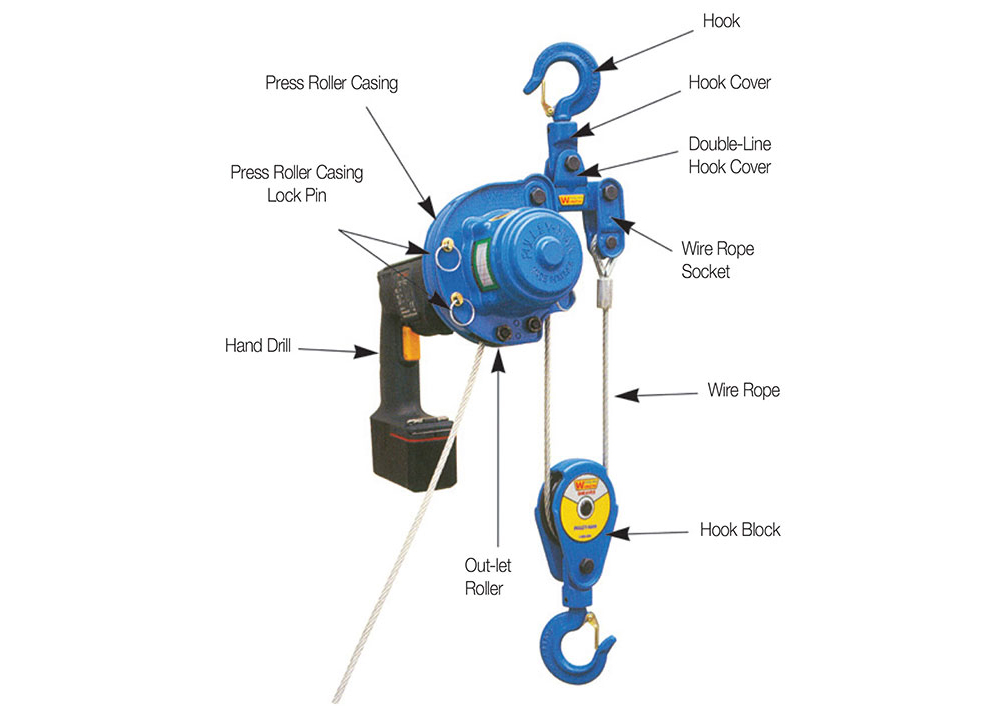

Capacity: 300 kg single line  600 kg double line



Easy installation and dismantling Compact and light (3,5 kg) Infinite working length (12 m supplied in standard)

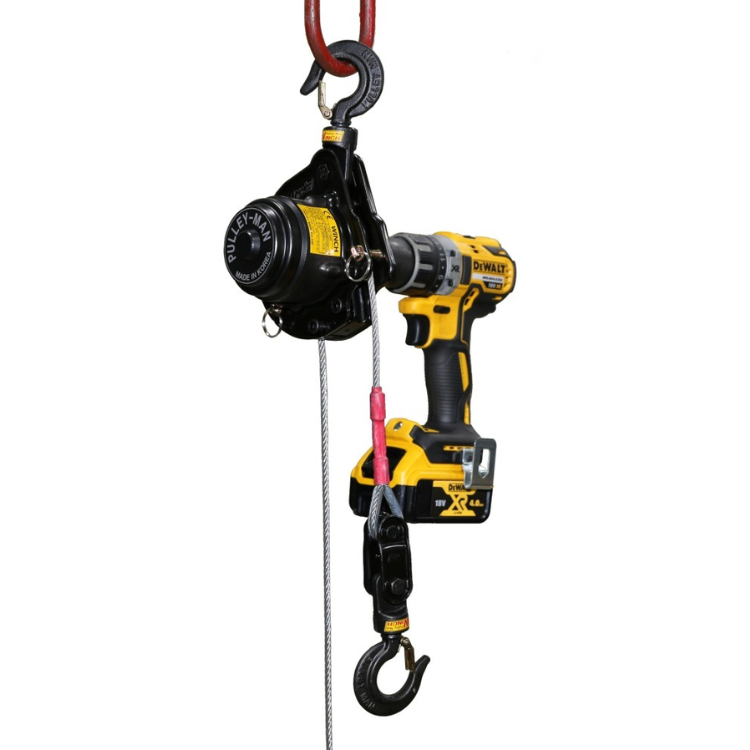

Powered by reversible hand drill or screwdriver Unlimited working distance

Horizontal/vertical/slant working conditions by fixed main body or fixed wire hook method screwdriver

Unlimited working distance

Horizontal/vertical/slant working conditions by fixed main body or fixed wire hook method

Trouble-free automatic holding-brake function (patented gear-reducer)

Can do many jobs in any 360′ rotating direction that you want

Speed depending on screwdriver speed used

Standard supplied with 12 m of aircraft galvanized steel rope Ø 4.76

Applications: electric and cable works, installation and maintenance teams, construction sites and industrial plants, carries agricultural, marine, dairy and forestry products, rescue works at sea, rivers, fires, military operations.
